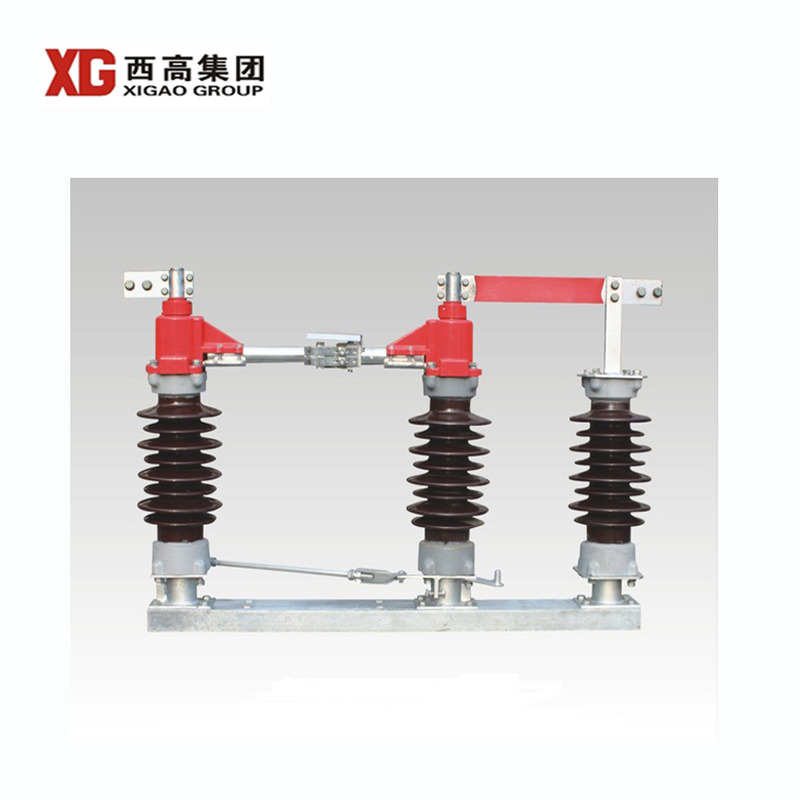

Vertical or Horizontal Mounting Design High Voltage Disconnect Switch with 24kV Rate Voltage

Product Description:

The High Voltage Disconnect Switch is a crucial component in electrical systems designed to isolate power in high voltage applications. With a rated voltage of 24kV, this disconnect switch is specifically engineered to handle high voltage levels efficiently and safely.

One of the key features of the High Voltage Disconnect Switch is its impressive mechanical endurance, capable of enduring up to 2000 operations. This high mechanical endurance ensures reliable performance and longevity, making it a durable solution for high voltage applications.

Operating at a rated frequency of 50Hz/60Hz, this disconnect switch is designed to meet the frequency requirements of various electrical systems, providing flexibility and compatibility across different setups.

The working temperature range of -45℃ to +40℃ further enhances the versatility of the High Voltage Disconnect Switch, allowing it to operate effectively in a wide range of environmental conditions. Whether in extreme cold or moderate heat, this disconnect switch is built to deliver consistent performance.

Backed by a 12-month warranty, customers can have peace of mind knowing that the High Voltage Disconnect Switch is covered against any potential manufacturing defects or malfunctions. This warranty reflects the manufacturer's confidence in the quality and reliability of this product.

In conclusion, the High Voltage Disconnect Switch is a high-performance electrical component designed for high voltage applications. With its robust construction, high mechanical endurance, wide operating temperature range, and warranty coverage, this disconnect switch offers a reliable and durable solution for isolating power in critical electrical systems.

Features:

• Product Name: High Voltage Disconnect Switch
• Rate Voltage: 24kV
• Life: 2000
• Trade Terms: EXW
• Operation: Manually/Automatically
• Warranty: 12 Months

Technical Parameters:

Applications:

Product Application Occasions and Scenarios for the High Voltage Disconnect Switch :

The High Voltage Disconnect Switch with a single pole configuration is designed for various applications in different settings. Its versatility and reliability make it suitable for a wide range of scenarios. Below are some of the key product application occasions:

1. Power Distribution Stations: The High Voltage Disconnect Switch is commonly used in power distribution stations to control and isolate high voltage circuits. Its single pole design makes it easy to integrate into existing systems for efficient power distribution.

2. Industrial Facilities: Industrial facilities often require high voltage equipment like the High Voltage Disconnect Switch to ensure safe and reliable operation. Its EXW trade terms make it convenient for procurement and installation in various industrial settings.

3. Utility Grids: The High Voltage Disconnect Switch is essential in utility grids to enable maintenance work, isolate faulty sections, and ensure smooth operations. Its rated frequency of 50Hz/60Hz makes it compatible with different grid systems.

4. High Altitude Installations: With a suitable altitude rating of 1000m, the High Voltage Disconnect Switch is ideal for installations in high altitude locations such as mountainous regions or elevated platforms.

5. High Current Applications: The High Voltage Disconnect Switch is capable of handling hot stable currents of up to 12.5kA/4S, making it suitable for high current applications where reliability and safety are paramount.

In conclusion, the High Voltage Disconnect Switch is a versatile and reliable product that can be applied in various occasions and scenarios, offering efficient power control and distribution in different settings.

Customization:

Product Customization Services for the High Voltage Disconnect Switch:

High Voltage Disconnect Switch suitable for an altitude of 1000m.

Rate Voltage: 24kV

Trade Terms: EXW

Mounting Type: Vertical Or Horizontal

Life: 2000

Support and Services:

The Product Technical Support and Services for the High Voltage Disconnect Switch include:

- Installation assistance for proper setup and connection

- Troubleshooting guidance for any operational issues

- Maintenance tips to ensure optimal performance and longevity

- Repair services for components or parts that may malfunction

- Training programs for users to understand the product's features and functionality

Packing and Shipping:

Product Name: High Voltage Disconnect Switch

Description: The High Voltage Disconnect Switch is a reliable and durable solution for safely disconnecting high voltage power systems. It is designed to meet industry standards for efficiency and performance.

Package Includes: - High Voltage Disconnect Switch - User Manual - Installation Guide

Package Dimensions: 12" x 8" x 4"

Shipping Details: - Shipping Method: Standard Delivery - Shipping Time: 3-5 business days - Shipping Cost: Free

FAQ:

Q: What is a High Voltage Disconnect Switch?

A: A High Voltage Disconnect Switch is a device used to isolate an electrical circuit from the power source for maintenance or safety purposes.

Q: What are the voltage ratings available for the High Voltage Disconnect Switch?

A: The High Voltage Disconnect Switch is available in voltage ratings ranging from 11kV to 245kV, suitable for various high voltage applications.

Q: What are the key features of the High Voltage Disconnect Switch?

A: The key features of the High Voltage Disconnect Switch include robust construction, reliable performance, remote operation capabilities, and high short-circuit current withstand capacity.

Q: How is the High Voltage Disconnect Switch installed?

A: The High Voltage Disconnect Switch is typically installed in substations or power distribution systems using appropriate mounting hardware and following manufacturer's installation guidelines.

Q: Can the High Voltage Disconnect Switch be operated manually?

A: Yes, the High Voltage Disconnect Switch can be operated manually using a mechanical operating mechanism or remotely using motorized operating mechanisms for added convenience and safety.
